QConicalGradient Class Reference
^{[QtGui module]}

The QConicalGradient class is used in combination with QBrush to specify a conical gradient brush. More...

Inherits QGradient.

Methods

• __init__ (self)
• __init__ (self, QPointF center, float startAngle)
• __init__ (self, float cx, float cy, float startAngle)
• __init__ (self, QConicalGradient)
• float angle (self)
• QPointF center (self)
• setAngle (self, float angle)
• setCenter (self, QPointF center)
• setCenter (self, float x, float y)

The QConicalGradient class is used in combination with QBrush to specify a conical gradient brush.

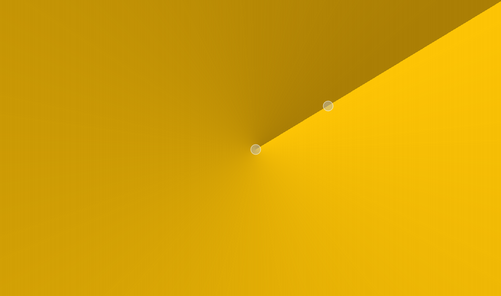

Conical gradients interpolate interpolate colors counter-clockwise around a center point.

The colors in a gradient is defined using stop points of the QGradientStop type, i.e. a position and a color. Use the QGradient.setColorAt() or the QGradient.setStops() function to define the stop points. It is the gradient's complete set of stop points that describes how the gradient area should be filled. If no stop points have been specified, a gradient of black at 0 to white at 1 is used.

In addition to the functions inherited from QGradient, the QConicalGradient class provides the angle() and center() functions returning the start angle and center of the gradient.

Note that the setSpread() function has no effect for conical gradients. The reason is that the conical gradient is closed by definition, i.e. the conical gradient fills the entire circle from 0 - 360 degrees, while the boundary of a radial or a linear gradient can be specified through its radius or final stop points, respectively.

Method Documentation

QConicalGradient.__init__ (self)

Constructs a conical with center at (0, 0) starting the interpolation at angle 0.

See also QGradient.setColorAt(), setCenter(), and setAngle().

QConicalGradient.__init__ (self, QPointF center, float startAngle)

Constructs a conical gradient with the given center, starting the interpolation at the given angle. The angle must be specified in degrees between 0 and 360.

See also QGradient.setColorAt() and QGradient.setStops().

QConicalGradient.__init__ (self, float cx, float cy, float startAngle)

Constructs a conical gradient with the given center (cx, cy), starting the interpolation at the given angle. The angle must be specified in degrees between 0 and 360.

See also QGradient.setColorAt() and QGradient.setStops().

QConicalGradient.__init__ (self, QConicalGradient)

float QConicalGradient.angle (self)

Returns the start angle of the conical gradient in logical coordinates.

See also setAngle() and stops().

QPointF QConicalGradient.center (self)

Returns the center of the conical gradient in logical coordinates.

See also setCenter() and stops().

QConicalGradient.setAngle (self, float angle)

Sets angle to be the start angle for this conical gradient in logical coordinates.

See also angle().

QConicalGradient.setCenter (self, QPointF center)

Sets the center of this conical gradient in logical coordinates to center.

See also center().

QConicalGradient.setCenter (self, float x, float y)

This is an overloaded function.

See also center().
