QDesignerTaskMenuExtension Class Reference
^{[QtDesigner module]}

The QDesignerTaskMenuExtension class allows you to add custom menu entries to Qt Designer's task menu. More...

Inherited by QPyDesignerTaskMenuExtension.

Methods

• __init__ (self)
• __init__ (self, QDesignerTaskMenuExtension)
• QAction preferredEditAction (self)
• list-of-QAction taskActions (self)

To create a custom task menu extension, your extension class must inherit from both QObject and QDesignerTaskMenuExtension. For example:

 class MyTaskMenuExtension : public QObject,
         public QDesignerTaskMenuExtension
 {
     Q_OBJECT
     Q_INTERFACES(QDesignerTaskMenuExtension)

 public:
     MyTaskMenuExtension(MyCustomWidget *widget, QObject *parent);

     QAction *preferredEditAction() const;
     QList<QAction *> taskActions() const;

 private slots:
     void mySlot();

 private:
     MyCustomWidget *widget;
     QAction *myAction;
 };

Since we are implementing an interface, we must ensure that it is made known to the meta-object system using the Q_INTERFACES() macro. This enables Qt Designer to use the qobject_cast() function to query for supported interfaces using nothing but a QObject pointer.

You must reimplement the taskActions() function to return a list of actions that will be included in Qt Designer task menu. Optionally, you can reimplement the preferredEditAction() function to set the action that is invoked when selecting your plugin and pressing F2. The preferred edit action must be one of the actions returned by taskActions() and, if it's not defined, pressing the F2 key will simply be ignored.

In Qt Designer, extensions are not created until they are required. A task menu extension, for example, is created when you click the right mouse button over a widget in Qt Designer's workspace. For that reason you must also construct an extension factory, using either QExtensionFactory or a subclass, and register it using Qt Designer's extension manager.

When a task menu extension is required, Qt Designer's extension manager will run through all its registered factories calling QExtensionFactory.createExtension() for each until it finds one that is able to create a task menu extension for the selected widget. This factory will then make an instance of the extension.

There are four available types of extensions in Qt Designer: QDesignerContainerExtension, QDesignerMemberSheetExtension, QDesignerPropertySheetExtension, and QDesignerTaskMenuExtension. Qt Designer's behavior is the same whether the requested extension is associated with a container, a member sheet, a property sheet or a task menu.

The QExtensionFactory class provides a standard extension factory, and can also be used as an interface for custom extension factories. You can either create a new QExtensionFactory and reimplement the QExtensionFactory.createExtension() function. For example:

 QObject *ANewExtensionFactory.createExtension(QObject *object,
         const QString &iid, QObject *parent) const
 {
     if (iid != Q_TYPEID(QDesignerTaskMenuExtension))
         return 0;

     if (MyCustomWidget *widget = qobject_cast<MyCustomWidget*>(object))
         return new MyTaskMenuExtension(widget, parent);

     return 0;
 }

Or you can use an existing factory, expanding the QExtensionFactory.createExtension() function to make the factory able to create a task menu extension as well. For example:

 QObject *AGeneralExtensionFactory.createExtension(QObject *object,
         const QString &iid, QObject *parent) const
 {
     MyCustomWidget *widget = qobject_cast<MyCustomWidget*>(object);

     if (widget && (iid == Q_TYPEID(QDesignerContainerExtension))) {
         return new MyContainerExtension(widget, parent);

     } else if (widget && (iid == Q_TYPEID(QDesignerTaskMenuExtension))) {
         return new MyTaskMenuExtension(widget, parent);

     } else {
         return 0;
     }
 }

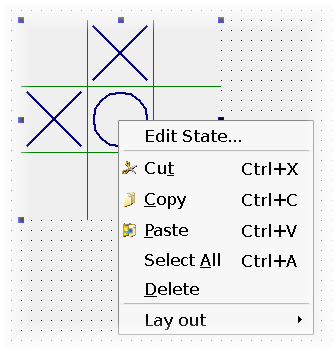

For a complete example using the QDesignerTaskMenuExtension class, see the Task Menu Extension example. The example shows how to create a custom widget plugin for Qt Designer, and how to to use the QDesignerTaskMenuExtension class to add custom items to Qt Designer's task menu.

Method Documentation

QDesignerTaskMenuExtension.__init__ (self)

QDesignerTaskMenuExtension.__init__ (self, QDesignerTaskMenuExtension)

QAction QDesignerTaskMenuExtension.preferredEditAction (self)

Returns the action that is invoked when selecting a plugin with the specified extension and pressing F2.

The action must be one of the actions returned by taskActions().

list-of-QAction QDesignerTaskMenuExtension.taskActions (self)

This method is abstract and should be reimplemented in any sub-class.

Returns the task menu extension as a list of actions which will be included in Qt Designer's task menu when a plugin with the specified extension is selected.
