QDialogButtonBox Class Reference
^{[QtGui module]}

The QDialogButtonBox class is a widget that presents buttons in a layout that is appropriate to the current widget style. More...

Inherits QWidget.

Types

• enum ButtonLayout { WinLayout, MacLayout, KdeLayout, GnomeLayout }
• enum ButtonRole { InvalidRole, AcceptRole, RejectRole, DestructiveRole, ..., ApplyRole }
• enum StandardButton { NoButton, Ok, Save, SaveAll, ..., RestoreDefaults }
• class StandardButtons

Methods

• __init__ (self, QWidget parent = None)
• __init__ (self, Qt.Orientation orientation, QWidget parent = None)
• __init__ (self, StandardButtons buttons, Qt.Orientation orientation = Qt.Horizontal, QWidget parent = None)
• addButton (self, QAbstractButton button, ButtonRole role)
• QPushButton addButton (self, QString text, ButtonRole role)
• QPushButton addButton (self, StandardButton button)
• QPushButton button (self, StandardButton which)
• ButtonRole buttonRole (self, QAbstractButton button)
• list-of-QAbstractButton buttons (self)
• bool centerButtons (self)
• changeEvent (self, QEvent event)
• clear (self)
• bool event (self, QEvent event)
• Qt.Orientation orientation (self)
• removeButton (self, QAbstractButton button)
• setCenterButtons (self, bool center)
• setOrientation (self, Qt.Orientation orientation)
• setStandardButtons (self, StandardButtons buttons)
• StandardButton standardButton (self, QAbstractButton button)
• StandardButtons standardButtons (self)

Qt Signals

• void accepted ()
• void clicked (QAbstractButton *)
• void helpRequested ()
• void rejected ()

     findButton = new QPushButton(tr("&Find"));
     findButton->setDefault(true);

     moreButton = new QPushButton(tr("&More"));
     moreButton->setCheckable(true);
     moreButton->setAutoDefault(false);

     buttonBox = new QDialogButtonBox(Qt.Vertical);
     buttonBox->addButton(findButton, QDialogButtonBox.ActionRole);
     buttonBox->addButton(moreButton, QDialogButtonBox.ActionRole);

Alternatively, QDialogButtonBox provides several standard buttons (e.g. OK, Cancel, Save) that you can use. They exist as flags so you can OR them together in the constructor.

     buttonBox = new QDialogButtonBox(QDialogButtonBox.Ok
                                      | QDialogButtonBox.Cancel);

     connect(buttonBox, SIGNAL(accepted()), this, SLOT(accept()));
     connect(buttonBox, SIGNAL(rejected()), this, SLOT(reject()));

You can mix and match normal buttons and standard buttons.

Currently the buttons are laid out in the following way if the button box is horizontal:

	Button box laid out in horizontal GnomeLayout
	Button box laid out in horizontal KdeLayout
	Button box laid out in horizontal MacLayout
	Button box laid out in horizontal WinLayout

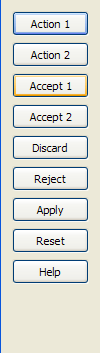

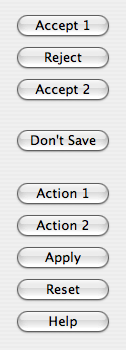

The buttons are laid out the following way if the button box is vertical:

GnomeLayout	KdeLayout	MacLayout	WinLayout

Additionally, button boxes that contain only buttons with ActionRole or HelpRole can be considered modeless and have an alternate look on Mac OS X:

modeless horizontal MacLayout

When a button is clicked in the button box, the clicked() signal is emitted for the actual button is that is pressed. For convenience, if the button has an AcceptRole, RejectRole, or HelpRole, the accepted(), rejected(), or helpRequested() signals are emitted respectively.

If you want a specific button to be default you need to call QPushButton.setDefault() on it yourself. However, if there is no default button set and to preserve which button is the default button across platforms when using the QPushButton.autoDefault property, the first push button with the accept role is made the default button when the QDialogButtonBox is shown,

Type Documentation

QDialogButtonBox.ButtonLayout

This enum describes the layout policy to be used when arranging the buttons contained in the button box.

The button layout is specified by the current style. However, on the X11 platform, it may be influenced by the desktop environment.

QDialogButtonBox.ButtonRole

This enum describes the roles that can be used to describe buttons in the button box. Combinations of these roles are as flags used to describe different aspects of their behavior.

See also StandardButton.

QDialogButtonBox.StandardButton

These enums describe flags for standard buttons. Each button has a defined ButtonRole.

The StandardButtons type is a typedef for QFlags<StandardButton>. It stores an OR combination of StandardButton values.

See also ButtonRole and standardButtons.

Method Documentation

QDialogButtonBox.__init__ (self, QWidget parent = None)

The parent argument, if not None, causes self to be owned by Qt instead of PyQt.

Constructs an empty, horizontal button box with the given parent.

See also orientation and addButton().

QDialogButtonBox.__init__ (self, Qt.Orientation orientation, QWidget parent = None)

The parent argument, if not None, causes self to be owned by Qt instead of PyQt.

Constructs an empty button box with the given orientation and parent.

See also orientation and addButton().

QDialogButtonBox.__init__ (self, StandardButtons buttons, Qt.Orientation orientation = Qt.Horizontal, QWidget parent = None)

The parent argument, if not None, causes self to be owned by Qt instead of PyQt.

Constructs a button box with the given orientation and parent, containing the standard buttons specified by buttons.

See also orientation and addButton().

QDialogButtonBox.addButton (self, QAbstractButton button, ButtonRole role)

The button argument has it's ownership transferred to Qt.

Adds the given button to the button box with the specified role. If the role is invalid, the button is not added.

If the button has already been added, it is removed and added again with the new role.

Note: The button box takes ownership of the button.

See also removeButton() and clear().

QPushButton QDialogButtonBox.addButton (self, QString text, ButtonRole role)

Creates a push button with the given text, adds it to the button box for the specified role, and returns the corresponding push button. If role is invalid, no button is created, and zero is returned.

See also removeButton() and clear().

QPushButton QDialogButtonBox.addButton (self, StandardButton button)

Adds a standard button to the button box if it is valid to do so, and returns a push button. If button is invalid, it is not added to the button box, and zero is returned.

See also removeButton() and clear().

QPushButton QDialogButtonBox.button (self, StandardButton which)

Returns the QPushButton corresponding to the standard button which, or 0 if the standard button doesn't exist in this button box.

See also standardButton(), standardButtons(), and buttons().

ButtonRole QDialogButtonBox.buttonRole (self, QAbstractButton button)

Returns the button role for the specified button. This function returns InvalidRole if button is 0 or has not been added to the button box.

See also buttons() and addButton().

list-of-QAbstractButton QDialogButtonBox.buttons (self)

Returns a list of all the buttons that have been added to the button box.

See also buttonRole(), addButton(), and removeButton().

bool QDialogButtonBox.centerButtons (self)

QDialogButtonBox.changeEvent (self, QEvent event)

Reimplemented from QWidget.changeEvent().

QDialogButtonBox.clear (self)

Clears the button box, deleting all buttons within it.

See also removeButton() and addButton().

bool QDialogButtonBox.event (self, QEvent event)

Reimplemented from QObject.event().

Qt.Orientation QDialogButtonBox.orientation (self)

QDialogButtonBox.removeButton (self, QAbstractButton button)

The button argument

Removes button from the button box without deleting it and sets its parent to zero.

See also clear(), buttons(), and addButton().

QDialogButtonBox.setCenterButtons (self, bool center)

QDialogButtonBox.setOrientation (self, Qt.Orientation orientation)

QDialogButtonBox.setStandardButtons (self, StandardButtons buttons)

StandardButton QDialogButtonBox.standardButton (self, QAbstractButton button)

Returns the standard button enum value corresponding to the given button, or NoButton if the given button isn't a standard button.

See also button(), buttons(), and standardButtons().

StandardButtons QDialogButtonBox.standardButtons (self)

Qt Signal Documentation

void accepted ()

This is the default overload of this signal.

This signal is emitted when a button inside the button box is clicked, as long as it was defined with the AcceptRole or YesRole.

See also rejected(), clicked(), and helpRequested().

void clicked (QAbstractButton *)

This is the default overload of this signal.

This signal is emitted when a button inside the button box is clicked. The specific button that was pressed is specified by button.

See also accepted(), rejected(), and helpRequested().

void helpRequested ()

This is the default overload of this signal.

This signal is emitted when a button inside the button box is clicked, as long as it was defined with the HelpRole.

See also accepted(), rejected(), and clicked().

void rejected ()

This is the default overload of this signal.

This signal is emitted when a button inside the button box is clicked, as long as it was defined with the RejectRole or NoRole.

See also accepted(), helpRequested(), and clicked().
